MODEL:SLD

AUTO LIQUID DISPENSING SYSTEM

Benefits

  1. Increase accuracy and speed：
    Computer connect and monitor the scale.It can reach the required accuracy and consistency are achieved.
  2. Eliminate mistake,improve quality：
    The opreator only handle the bucket.Can avoid any errors take place during the process.Maintains high production quality standards.
  3. Cost saving：
    Economical chemical usage by elimination of waste.
  4. Efficiency：
    Can using membrane pump to deliver the chemical to dosing unit.It makes simple plant engineering layout.
  5. Environment approve：
    Compact design and limited space occuqied.The system can brings the environment cleaning and safety.
  6. Management report：
    Provide daily and monthly consumption static report.Detailed weighing record can be a part of procedure management.

Specifications

Structure

No. of chemical
Up to 42
Disoensung valve
Pneumatic valve(Material:PVC or SUS304)
Chenical supply

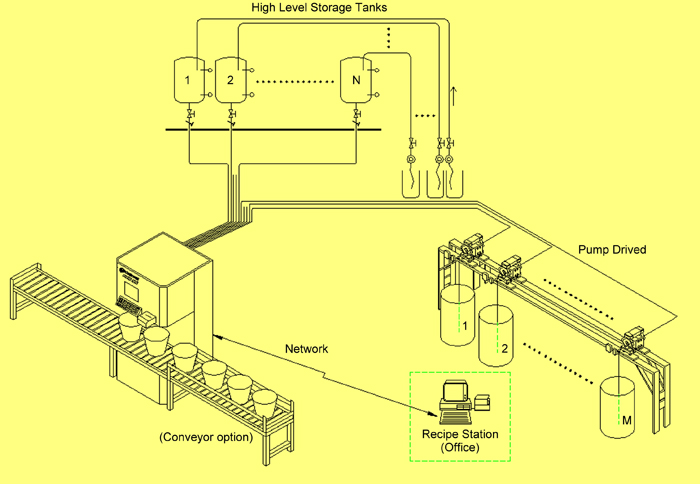

Air diaphragm pump or high position storage tank
Control method
By PLC control
Frame material
SUS304 Rack with compacted plastic board
Computer for recipe station
IBM Compatible PC(prepare by customer)
Software
Auto dispensing,consumption report.
Utilities

Water:1"、Power220V,1P,50/60Hz,10A、Air:5kg/c㎡

Dimension

1Bucket:1100mm(W)×1050mm(D)×1730mm(H) / 300kg appro
2Bucket:1100mm(W)×1150mm(D)×1730mm(H) / 300kg appro
3Bucket:1400mm(W)×1060mm(D)×1730mm(H) / 350kg appro
sld02
(Specifications are subject to change without notice)

Features

sld04
sld05
sld07
sld03
  1. Can connect the exist recipe station to transfer the recipe without human writing & calculation.
  2. 25 Times enlarge the weighing result on the display.
  3. Clean the tube automatically after dispensing.
  4. Modular design to allow increases in capacity.
  5. Provide the weighing report as well as the consumption report.
  6. Will separate into different buckets if chemical can not mix before put in dye bath.
  7. Can apply for Exhaust,continuous dyehouse.
