MODEL:SPD

SEMI-AUTO POWDER DISPENSING SYSTEM

Benefits:

1. Reduce to taking the wrong dyes：

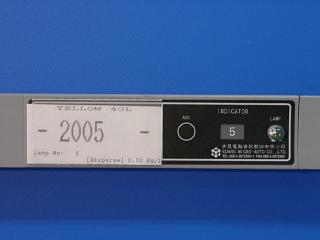

   Install an indicator beside each dyestuff bucket.It will guide the operator to take the fight dyestuff.

2. Improve reproducibility：
   Controlled the dye weight accurately.

3. Eliminate the writing error：
   No need to calculate and type the recipe card.Can avoid writing and calculated error occurs.

4. Traceable weighing record：
   All weighing record is stored in computer.Including date,time,recipe in detail,and the actual weight.

5. Dyes consumption report：
   Provides daily consumption report can update inventory right away.Periodic report also available.

6. Network：
   Be able to connect other computer by network.

7. Environment：
   Installed dyes position indicator,forced dyes layout in order.

Specification

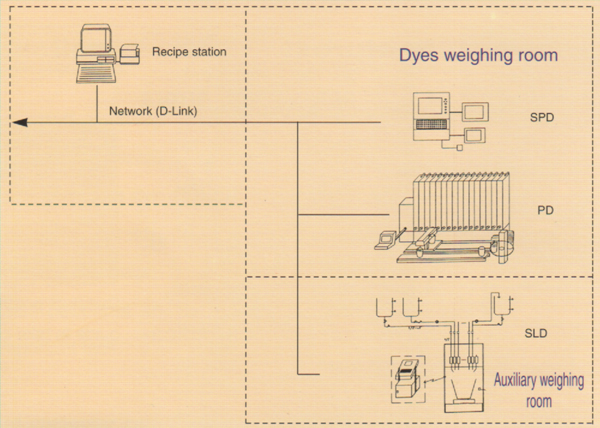

Dyestuff/Chemical Automatic Weighing System Flowchart

Recipe Station	IBM compatible computer.(Option)
Weighing Station	Industrial grade.
Printer (Weighing Station)	40 column two colors.
Scale	High precision electronic scale.
UPS	Stand by.
Indicator	Red LED.
Power	220V,50/60Hz,single phase,15A
Dimension (Weighing Stand)	1120mm(L)×760mm(W)×1390mm(H)
Weight	150kg appro.

Features:

• Eliminate human errors and mistake.

• Two scale combination.

• Flexible tolerance setting.

• Vocal alarm and notice.

• Dyestuff position indicator.

• Result label printing.

• Report & record.

• With an UPS.

• Inventory report.(Weighing room)
